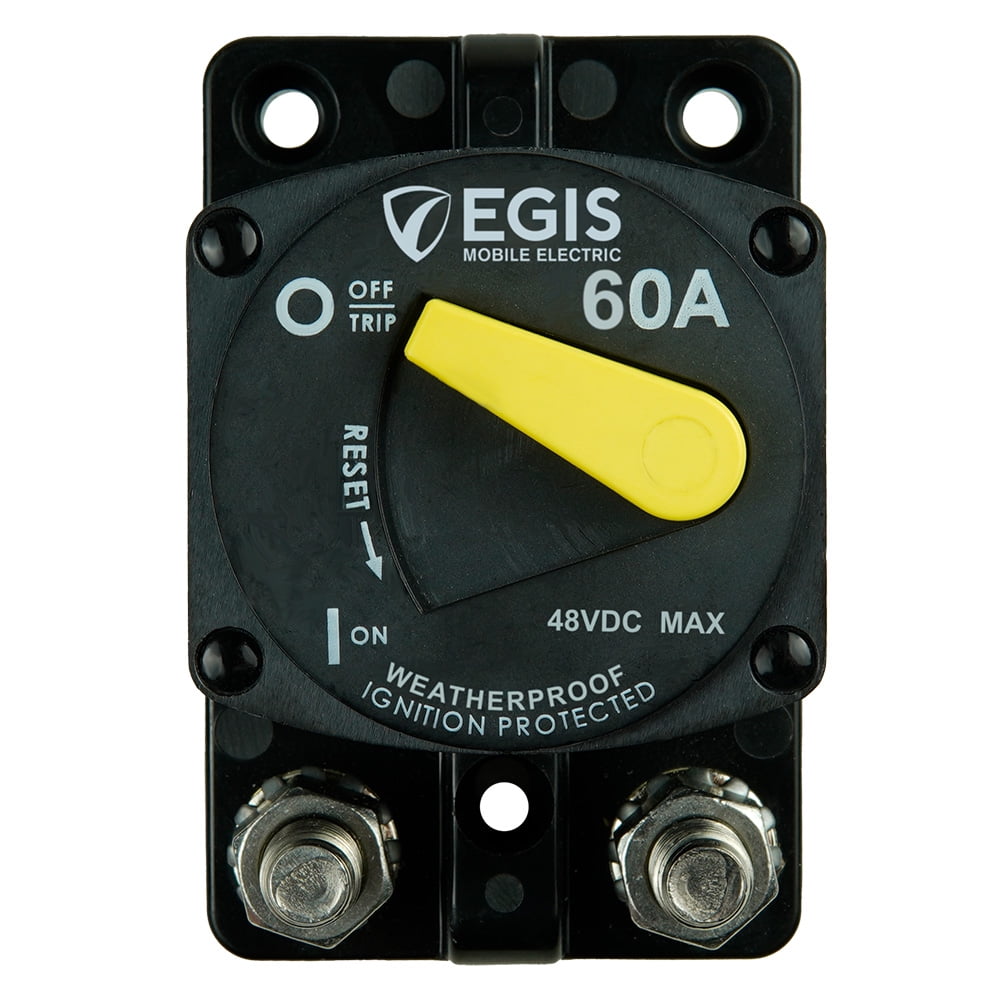

Egis 60A Surface Mount 87 Series Circuit Breaker [4704-060]

60A Surface Mount 87 Series Circuit BreakerThis 60A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.Applications:Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solutionAllows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the locationFeatures:IP66 sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation  High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDCHigh Electrical / Manual Switching Endurance delivers 2,000 cycles at full currentHigh Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power4-Year Warranty - Egis stands behind its product's ability to meet the user's needsSpecifications:Continuous Current Amps: 60Max Voltage: 48Cycling Endurance: 2,000Interrupt Current @14 VDC (Amps): 5,000Interrupt Current @28 VDC (Amps): 3,000Ingress Protection Rating: IP66Focal Features:ON/OFF High Visibility ControlsSealed against dust and moisture penetration. The high-temperature rating for all installation locations.Reinforced Mounting Ensures long-term structural reliability with reinforced mounting tabs built to withstand the stress of vibration. Stainless Steel Hardware / Serrated Flange NutsCorrosion and vibration resistance for harsh environment applications.Proudly of high-quality components.WARNING: This product can expose you to chemicals which are known to the State of to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:Amperage: 60aBox Dimensions: 3"H x 3"W x 5"L WT: 0.6 lbsUPC: 850035199329Quick Guide (pdf).embed-container { position: relative; padding-bottom: 56.25%; height: 0; overflow: hidden; max-width: 100%; } .embed-container iframe, .embed-container object, .embed-container embed { position: absolute; top: 0; left: 0; width: 100%; height: 100%; }

• 87 SERIES, 60 A, SURFACE MOUNT
• MARINE CIRCUIT BREAKER
• Authentic Part
• 4704-060
